_ final presentation sheets

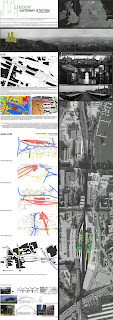

Sheet 2_ brief, scheme development, site plan, ground floor plan, first floor plan.

Sheet 3_ main perspectives including internal images of platforms to images revealing the proposal in site context.

Sheet 4_ site elevations, construction section and detail.

Monday 18 May 2009

_ Final Perspectives

Potential final images to be used in presentation.
Entrance foyer revealing information screens to ticket offices.
Platform 3 at night:
External night perspective showing the 'glowing' green walls:
North elevation perspective displaying the station entrance and proposed public open space.

Monday 11 May 2009

_ Finalising design

Artlantis site plan image to be used on maybe google earth image to show proposal context.
External perspective revealing the 'glow' of the station.
Internal perspective showing ticket barriers and access up to platform 2 and 3.
Top perspective of the form of platform 4 and 5. A successful image but not to be used.

Wednesday 1 April 2009

_ development work for sheets

Initial development sketches to be included on final presentation.







Saturday 28 March 2009

_developing scheme

Developing the final design scheme, illustrated here in 3D format of potential images and perspectives.

Site perspective revealing the whole building form.

Saturday 14 March 2009

_ abstract wave design model

Below are some images of a physical model of the design scheme. It has allowed me to explore the spaces in a more detailed way and gives a better sense of how the scheme looks and interacts.

Above is a quick attempt of illustrating the concept of lighting some or all of the structural elements to make the building a landmark building within the city as well as in the south area of the city.

I am not sure how the photoshop technique has come out but I think gives an idea of what the concept is seeking to achieve.

The main entrance point for the building illustrated at the larger span opening of the structured elements.

View entering from the main High Street allowing entrance to the building as well as a route through to the south of the station. The structural elements continue to form interaction with the pedestrians as well as an element of shelter.

Thursday 12 March 2009

_ abstract wave design

Beginning to start to form the language of my building design. As the images reveal the external facade is broken down by sporadic solid elements and between them is filled by glazed elements. The solid elements will take a structural form as well as including a luminous cladding to contrast with the cities’ illuminated cathedral.



The structure will also affect the internal elements creating a large, light and airy space with interesting shadows being projected into the internal space as the renders reveal.
